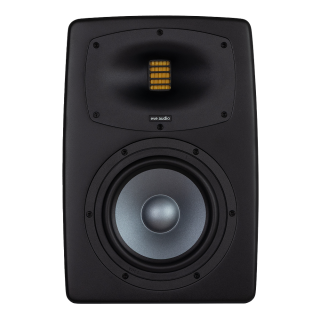

EXO 27
The ultimate solution for uncompromising sound quality.
The EXO 27 is the powerful all-rounder of the EXO series — designed for those who settle for nothing less than pure sonic performance.
The ideal solution for demanding producers, sound engineers, and professional control rooms — wherever powerful output, uncompromising linearity, and rock-solid reliability are non-negotiable. Thanks to its precise directivity, the EXO 27 is also perfectly suited for immersive formats such as Dolby Atmos and other multichannel applications. To simplify mounting, the EXO 27 is equipped with four M6 threaded mounting points on the bottom of the housing.
Hear every detail
The EXO series sets new standards in audio engineering. With an innovative EXO Precision AirMotion tweeter and an advanced GDC waveguide, it ensures an ultra-wide sweet spot, perfect stereo imaging, and homogeneous dispersion. Deep bass is reproduced with precision and control across the extended frequency range with the highest accuracy by a newly developed woofer with aluminum diaphragm.
Engineered for sonic precision
The acoustic design of the EXO 27 has been carefully crafted to deliver exceptional sound performance.
EXO 27 combines the EXO Precision AirMotion tweeter with the GDC waveguide (Guided Directivity Control) to ensure controlled, wide dispersion. The result is a precise stereo image across the entire frequency range. This enables accurate stereo reproduction and spatial coherence in setups like Dolby Atmos. The AMT is made of ultra-light polyamide and provides fast transient response, outstanding efficiency, and precise high-frequency reproduction with minimal distortion.
The larger 6.5-inch CAL woofer (coated aluminum) delivers deep, punchy bass while ensuring clear mids — perfect for detailed mixes that need to translate well to larger systems. The lightweight aluminum woofer diaphragm, featuring a resonance-damped cap and optimized magnet system, guarantees precise and dynamic playback with minimal distortion.
The specially shaped, airflow-optimized LDE (Low Diffraction Enclosure) cabinet with rounded edges minimizes unwanted reflections and supports even sound distribution. The curved design with smooth, rounded edges reduces diffraction and contributes to a cleaner and more accurate listening experience. The improved, rear-facing bass reflex ports with optimized aerodynamics allow deeper bass tuning while significantly reducing port noise.
The sound of your system in your hands
Perfect the sound of your multichannel setup without leaving the comfort of your listening position. Use filters, EQs, delay, and much more with the new EVE Control software.
Coming soon: With the EVE Control software, you have full control over your sound — in real time. You can individually adapt the monitors to your room, make fine adjustments, and optimize the perfect sound for your production. Especially for immersive setups like Dolby Atmos, the software guarantees precise placement of sound sources.
Effortless control and instant feedback
The rear-mounted OLED display, together with the integrated SMART Control Knob, provides an intuitive and user-friendly interface.
All key system parameters are clearly visible, and the SMART Control Knob enables precise adjustments for settings such as output level, room adaptation filters, and input source selection. The EXO 27 provides seamless access to software control, precise calibration, and future-proof firmware updates, allowing real-time adjustments directly on the monitor without interrupting your workflow.
The illuminated “eve audio” logo on the front acts as a multicolor status indicator and provides instant feedback on operational states such as overload protection, firmware updates, and other system statuses. During normal operation, the logo glows warm white, indicating optimal system performance and readiness for hi-fi playback or critical monitoring tasks. The brightness of the logo can be adjusted to suit your personal preferences.
Technical Information
General
- Dimensions (mm): 234 x 344 x 280
- Dimensions (inch): 9.2 x 13.5 x 11.0
- Weight: 8.1 kg (17.9 lb)
- Output Power per Monitor: 280 W
Tweeter
- Model: Precision AirMotion Tweeter (PAMT)
- Waveguide Technology: Guided Directivity Control (GDC)
- Output Power: 140 W / 1%
Woofer
- Woofer Diameter: 6.5"
- Diaphragm Material: Coated Aluminum
- Woofer Voice Coil: Airflow-optimized voice coil design
- Output Power: 140 W / 1%
Acoustics
- Frequency Range (-3 dB at 1 m free field): 41 Hz - 24 kHz
- Max. SPL (Free Field) > 100 Hz: 116 dB
- Max. SPL (Half Space) > 100 Hz: 122 dB
- Crossover Frequency: 2200 Hz
Features
- Protection Limiting: Yes
- Wake-on-LAN: Yes
- Wake-on-Signal: Yes
- Automatic Standby Mode: Yes (Adjustable)
- Status LED: Yes (Indicates 8 different states, e.g. signal clipping)
- Mounting: Bottom hole pattern 50.8 x 107.9 mm (M6)
- User Interface (Access to filters and settings): Rear OLED display with SMART Control Knob
Adjustable Settings
- Volume: -∞ to +10 dB
- High-Shelf Filter (-5 dB to +3 dB): > 3 kHz
- Mid EQ (-3 dB to +3 dB): 2.6 kHz
- Desk Filter Cut (-5 dB to 0 dB): 470 Hz
- Low-Shelf Filter (-5 dB to +3 dB): < 300 Hz
- Max. Input Level: -10 dBV (max. 16.5 dBu) / +4 dBu (max. 20 dBu)
- Inputs: Balanced, unbalanced, S/PDIF L/R/Mono
- LED Brightness: Continuously dimmable from 0% to 100%
- IP Address Configuration: Manual/Automatic (DHCP)
- Standby Mode: 15 min / 30 min / 60 min / Off
Connections
- Balanced XLR: Analog signal input
- Unbalanced RCA input: Analog signal input
- S/PDIF digital: Digital signal input/output
- LAN: Ethernet and software access
Power Consumption
- Standby: < 1 W
- Idle Power Consumption: 7 W
- Peak Power Consumption: 400 W
