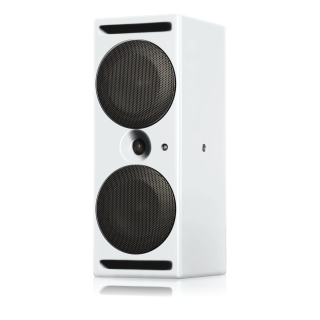

PSI Audio A214-Ms White
Powerful Active Centre Monitor for Surround Systems
The PSI Audio A214-M is designed as the ideal centre speaker for surround systems. Its powerful and accurate performance makes it the perfect choice for post-production studios and film mixing suites. The compact cabinet allows easy installation below screens or in tight studio environments.
Featuring a True D’Appolito design with a tweeter positioned between two woofers, the A214-M delivers outstanding sound pressure and precision. With 100% analog circuitry, AOI (Adaptive Output Impedance), CPR (Compensated Phase Response), and Class G/H amplifiers, it ensures accurate linear response and exceptional phase coherence. Each unit is individually calibrated in PSI’s anechoic chamber and delivered with its unique frequency response sheet.
Main Features
- Powerful active centre monitor
- 100% analog – no DSP
- True D’Appolito design (tweeter between two woofers)
- Monitor can be rotated 90°
- Class G/H amplifiers
- Flat frequency response
- Individually calibrated in anechoic chamber
- Handmade tweeter
- Handcrafted in Switzerland
Technical Specifications
- Power RMS: 280 + 45 W
- Frequency Range: 53 Hz – 23 kHz
- Peak Max SPL @ 1 m: 117 dB
- Continuous Max SPL @ 1 m: 104 dB
- Short Term Max SPL @ 1 m: 108 dB
- Signal-to-Noise Ratio: 96 dBA
- Dispersion (H x V): 80° x 40°
- Crossover Frequency: 1.8 kHz
- Woofers (2x): Ø147 mm (5.8"), Diaphragm Ø104 mm (4.1")
- Tweeter: Ø100 mm (3.9"), Diaphragm Ø27 mm (1.06")
- Frequency Tolerance: ±2 dB
- Phase Tolerance: ±45° (300 Hz – 20 kHz)
- Dimensions (W x H x D): 446 x 166 x 200 mm
- Weight: 10.5 kg
- Colour Options: Studio Red, Metal Black, Pure White
Recommended Setup
- A21-M as Left + Right
- A14-M as Surround
- A214-M as Center
- Sub A225-M as LFE
Optional Accessories
-
Subwoofer A125-M – compact extension for A17-M
-
Subwoofer A225-M – more power and low-end down to 24 Hz
-
Gig Bag – protective case, handmade in USA
-
Grill Protection – tweeter and woofer protection for public or home use
-
Brackets – wall or ceiling mounting solution
Applications
- Recording / Producing
- Mixing
- Mastering
- Broadcast
- Post Production
- Home Listening
Warranty
Handcrafted in Switzerland
All PSI Audio products are handmade in Switzerland with passion and precision. Manual manufacturing ensures components are perfectly matched, eliminating tolerance accumulation and guaranteeing outstanding sonic consistency in every unit.
