Fat Top II Brown w/Lundahl Deluxe
The Fat Top II is a short ribbon passive microphone that delivers a smooth, warm, rich, fat, rounded tone. Produces a well-rounded sound without the need to EQ out the brittle or sharp highs. This microphone will roll off the high frequencies that will help with perceived warmth. The bi-directional Polar pattern picks up sound essentially equally from both faces with a large null between faces, ideal for isolating sound sources.
It’s frequency and sensitivity response deliver pristine audio results. Translates natural analog sound into the digital domain, giving warmth and smoothness to what might be a cold and sterile digital recording. Versatile enough to handle any vocals or instruments in recording and live sound application.
Can be used in pairs in a Blumlein set up to pick up the entire room. Fat Top II comes standardly fitted with the upgraded Lundahl LL2913 Transformer. Introducing the upgraded Lundahl to the already quality hardware makes for an extended frequency range. This gives the mic improved definition, lower floor and higher ceiling.
Best suited for guitar cabinets, piano, brass and percussion instruments.
Features
- Type: Ribbon (velocity) Microphone
- Ribbon Type & Dimensions: 99.99% Pure Aluminum, 2.5 microns, 1 3/4” (L) X 3/16” (W)
-
Polar Pattern: Symmetrical Figure 8
- Sensitivity: -54.4 dB (1.5 (mV/Pa)
- Frequency Response: 30 to 15 KHz (+/- 3dB)
- Impedance: <=200 Ohms
- Recommended Load Impedance: 1000 Ohms
- Max.SPL (1% THD @1000 Hz): 135 dB
- Equivalent Noise Level: to IEC 268-4 (A weighted) 17dB
- S/N ratio: re 1Pa: 70 dB
- Connector: 3-Pin Male XLR
- Size: Diameter: 3” (O.D. grill), overall length 8 1/2”, 1 7/8” (O.D. body)
-
Transformer: Standardly fitted with LL2913 Lundahl Transformer

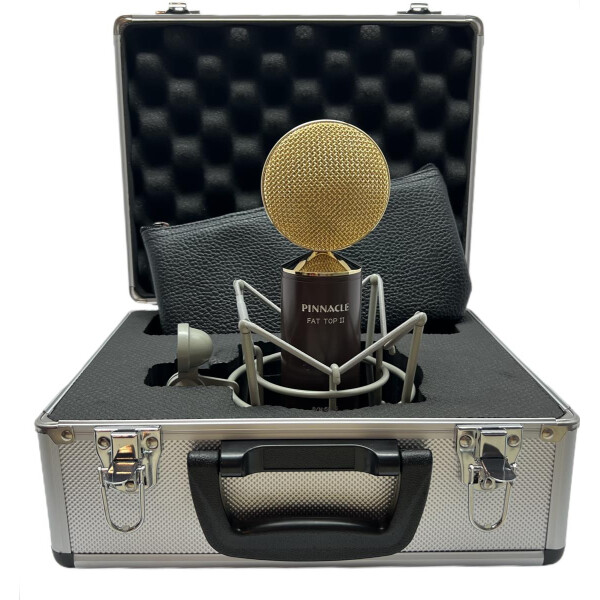

Includes
- 1 x Fat Top II Brown Ribbon Microphone w/Lundahl
- 1 x Deluxe Shockmount
- 1 x Carrying Pouch
- 1 x Alum. Case
