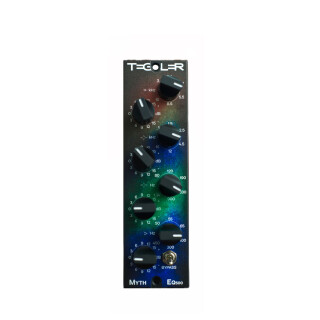

Tegeler MythEQ 500

SKU: TGLR-MEQ500
Category: Recording
Manufacturers: Tegeler

MythEQ 500, 500s the magic equalizer

€ 679,00

incl. 19% VAT , incl. shipping costs

Available immediately
Delivery time: 2 - 5 Workdays (DE - int. shipments may differ)

Description
Reviews

MythEQ 500

A new equalizer without replacing the previous one? That was the main question Tegeler asked themselves.
The Classic Equalizer EQP-1 stands out with its beautiful warm sound. So it was clear: Tegeler needed to create the Yang to the Yin-EQ.

A unit that works cleaner, but can also add some bite to the sound. Yet it still retains the Tegeler character. One that allows you to create both warm and musical curves, as well as bold and aggressive EQ shapes.

One EQ to Rule Them All…

To distort them, to shape them, to boost them or tame them, to surgically cut frequencies or sculpt beautiful new peaks and valleys.
Tegeler’s new EQ brings all of these features together.

Why MythEQ?

Tegeler’s Facebook poll for naming the new EQ gave a clear result: Because after something “legendary,” only something “mythical” can follow.

“After a legendary piece, only a mythical one from you can follow.”
And thus, the MythEQ was born.

Sit back, relax, and let’s take a journey with your new EQ.

Your vocal needs some sunshine? No problem — turn up the top shelf filter to 10 kHz and boost until your vocal beams like the sun itself.

Your kick lacks punch?
Grab the mid-bandpass filter, set it to 80 Hz, and boost until the neighbor starts banging on the wall.

Your snare isn’t loud enough for deaf 2kHz Hip-Hop fans?
Take the upper bell filter, set it to the right frequency, and boost until even the back row feels the crack.

Your techno junkie says the bassline doesn’t hit hard enough?
Use the low shelf, set it to 300 Hz, and push until they feel it rumble in their gut.

Pushes, punches, and slams! Guaranteed.
With an incredible range of -15 to +15 dB, you can bring out even the quietest details or tame the loudest peaks with ease.

The cherry on top (of the MythE)Q
To round out the sound and add some classic Tegeler flavor, in-house transformers were added.
Tegeler conducted countless listening tests and chose the most beautiful tone. Transformers create a pleasing sonic saturation by converting current → magnetic field → current, along with their inherent non-linearities.
Bass becomes tighter and more defined. Highs are smoothly rounded.

Become Mythical!

Try the MythEQ in your setup. Imagine how it seamlessly blends in and elevates your sound to the next level. The endless search for “the right EQ plug-in” is finally over.

Because now you have the one EQ to rule them all.

Features

API-500 series mono equalizer
Toggle switch: In/Bypass
High band shelf filter: 3 kHz, 3.3 kHz, 3.7 kHz, 5.5 kHz, 8.5 kHz, 10 kHz
Upper mid bell filter: 1 kHz, 1.5 kHz, 2.5 kHz, 4.5 kHz, 12 kHz, 16 kHz
Lower mid bell filter: 80 Hz, 120 Hz, 190 Hz, 330 Hz, 900 Hz, 1.3 kHz
Low band shelf filter: 50 Hz, 55 Hz, 65 Hz, 100 Hz, 300 Hz, 450 Hz
Maximum boost/cut: ±15 dB

Technical Specifications

Frequency response: 20 Hz – 40 kHz
Maximum input level: +20 dBu
Input impedance: ≥ 2.4 kΩ
Output impedance: < 600 Ω
Maximum output level: +21 dBu
Dynamic range: ≥ 100 dB
Operating voltage: ±16V
Fuse: –
Max power consumption: 80 mA
Size: Standard API 500 series module size
Weight: 540 g

Product safety information

Manufacturer information:

Tegeler Audio Manufaktur GmbH
Weststr. 1
Berlin, Deutschland, 13405
contact@tegeler.com

There are no reviews yet.
